Project Milestones

Successful test of ski and orientation routine. Scored 36 points in two minutes

Wheel hubs have been lasercam'd, toleranced, and inserted into 72mm rollerblade wheels

Prototype base platform has been lasercam'd

L channels have been machined to allow drive gearmotors to mount onto base

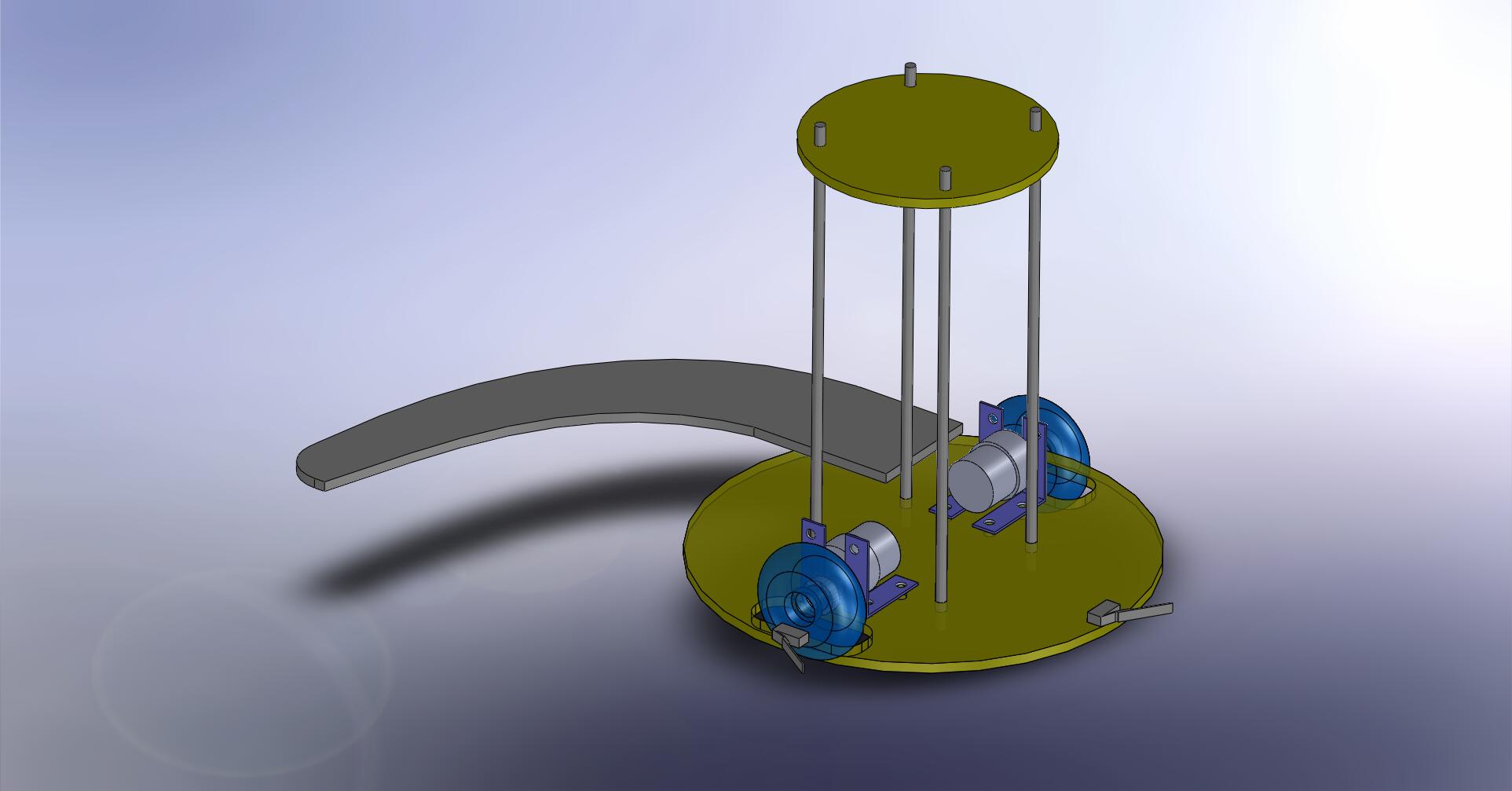

Gearmotors, hubs, wheels, L channels and base have been assembled

Announcements

Tests to Perform

1. Test SwitchPerformace
2. Determine amount of differential steering needed to keep pressure on wall
   1. Modify cockroach platform by adding flat side bumper
3. Test Drive train
4. Test DeploymentMechansim
5. Test InfraredSensor
6. Proof of Concept: SkiGuide 1 1 Proof of Concept Tests:
7. ExtendingMechanisms

To buy

1. Solenoids - Done
2. Motors - Done

To Do

1. Test thinner ski to prevent balls from stalling bot
2. Test skirts to prevent balls from stalling bot
3. Get subsystems checked off by TA's done
4. Add capacitors to motors. done
5. Add capacitos to LM7805 voltage regulator as shown in todays lecture (2-24-09)
6. Connect voltage regulator to only one battery, not two in series (lecture 2-24-09)
7. Heat-sink voltage regulator and anything else. done
8. Molex connector from battery to beacon
9. Test tape-sensor, make circuit
10. Check current rating of voltage regulator
11. Cut all-thread down to 12" lengths done
12. Add more holes to base for castor-system Done
13. Add more holes to ski for bearing bolts (can't add countersinks to underside with lasercam, need to do by hand) done

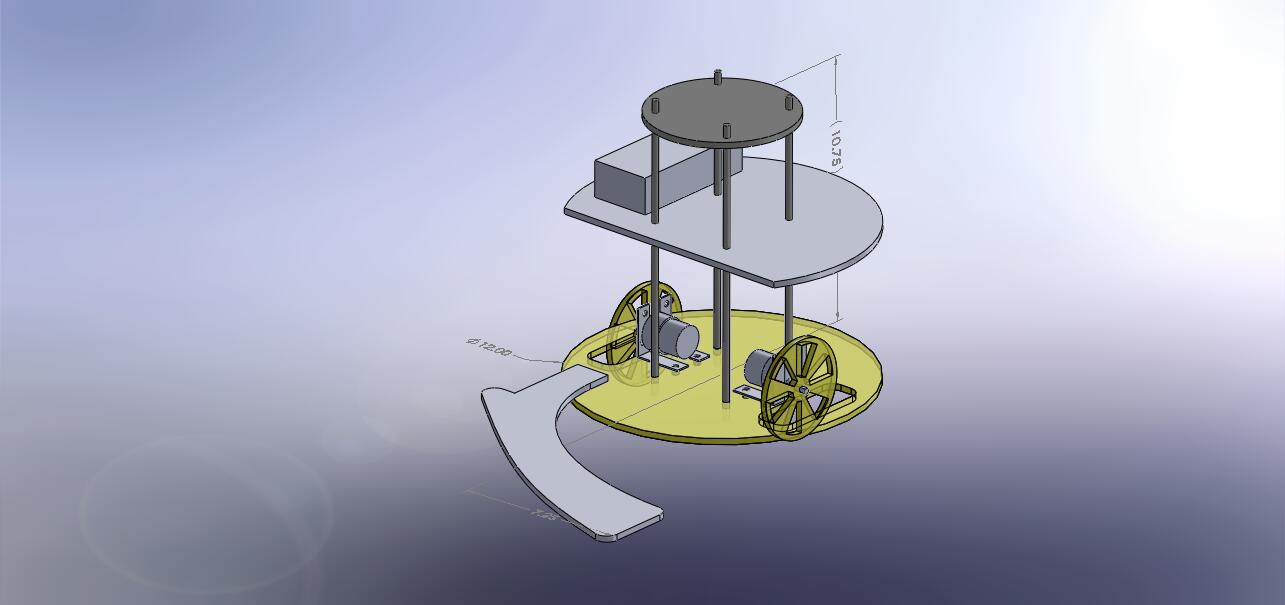

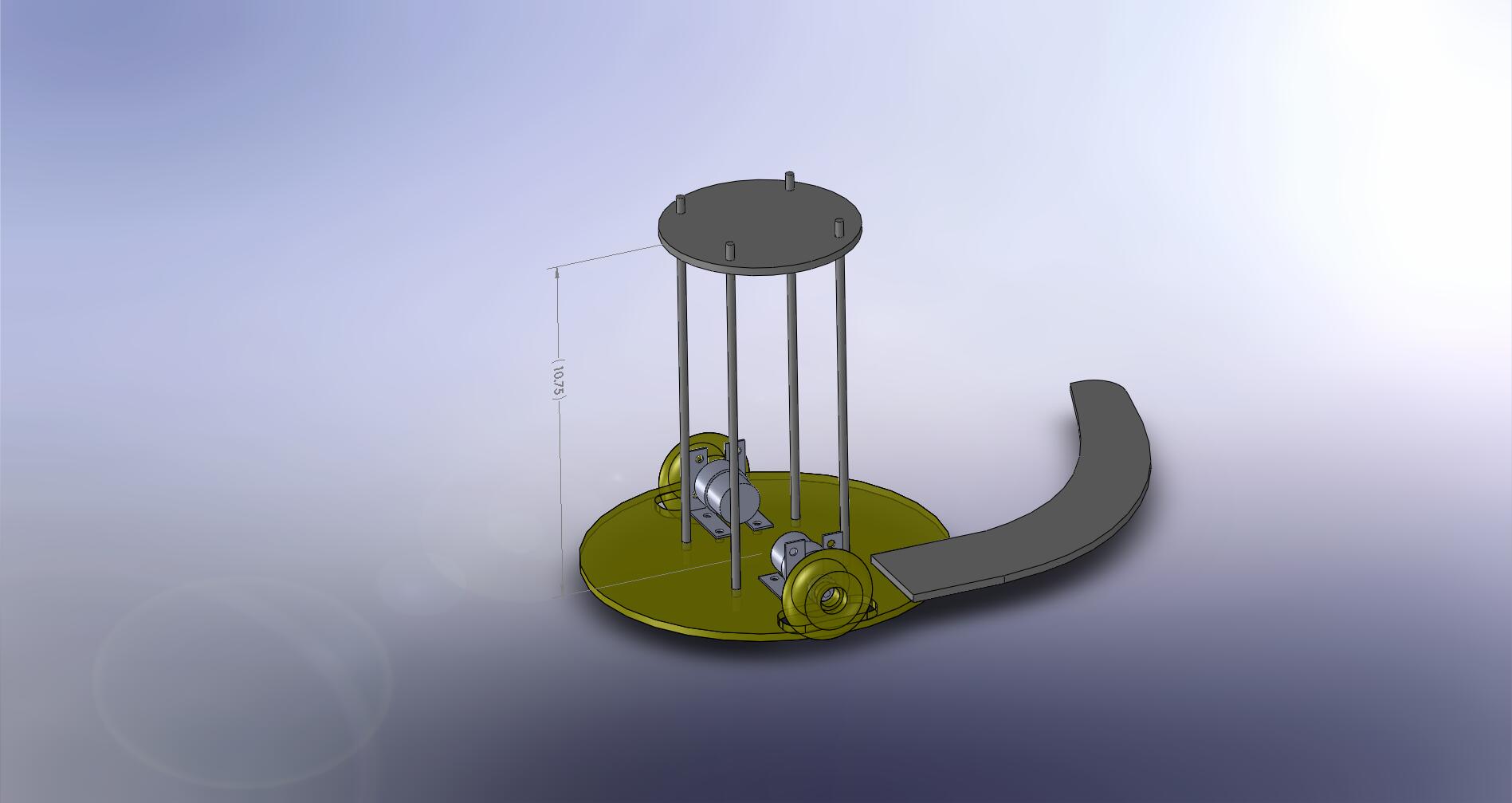

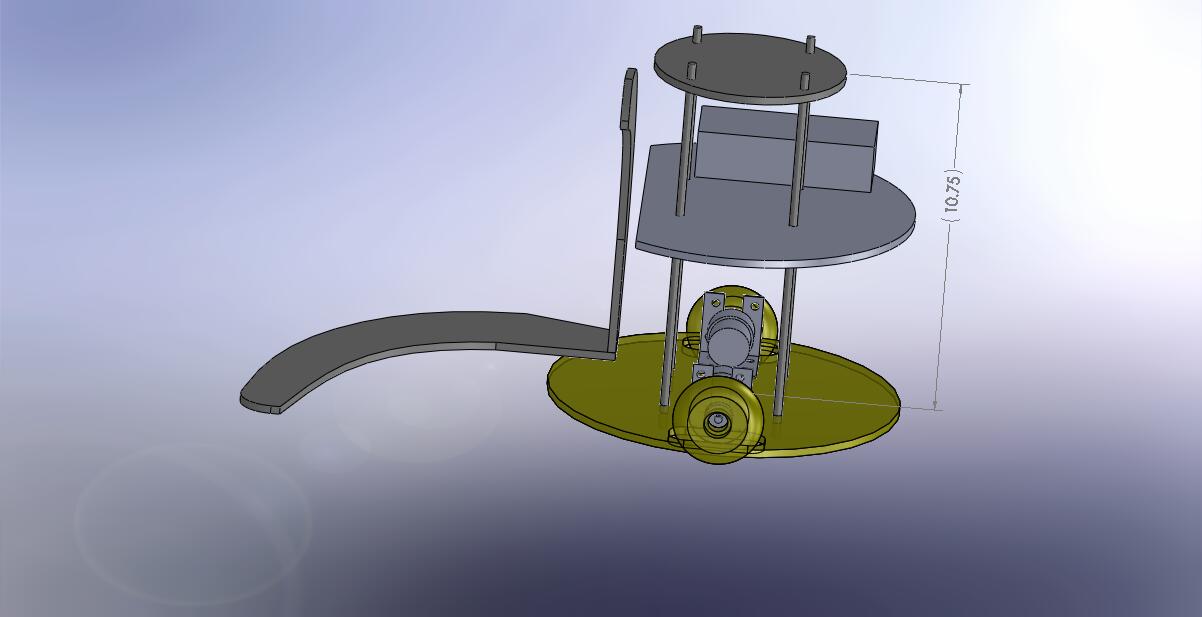

14. CAD wheels, new base, and new platform. Figure out where breadboard, battery, and hbridges will go. done
15. Assemble everything and test it on actual platform. Does our basic design (open-loop orientation, unfolding ski, perimeter tracing) beat the brick?
16. Troubleshoot basic design (skis may need to be refined multiple times)
17. Test faster motors. Which have better performance?
18. Test various wheel sizes. What is the maximum speed we can achieve?
19. Consider optional improvements - light sensor? Limit switches for orientation? using meeasuring tape extensions for crab walking? ball launcher?
20. Find max Ruler extension such that it will snap back when constrained by floor. Max is 36inches
21. Find time extension at 5 V of ruler (Done 3 secs to)
22. Many things require 5 V only. maybe make on rail 5 V (Done)
23. Make sensitive yet robust end switch for ruler
24. Back up project code (Done feb 21)
25. PUt off switch for solenoids

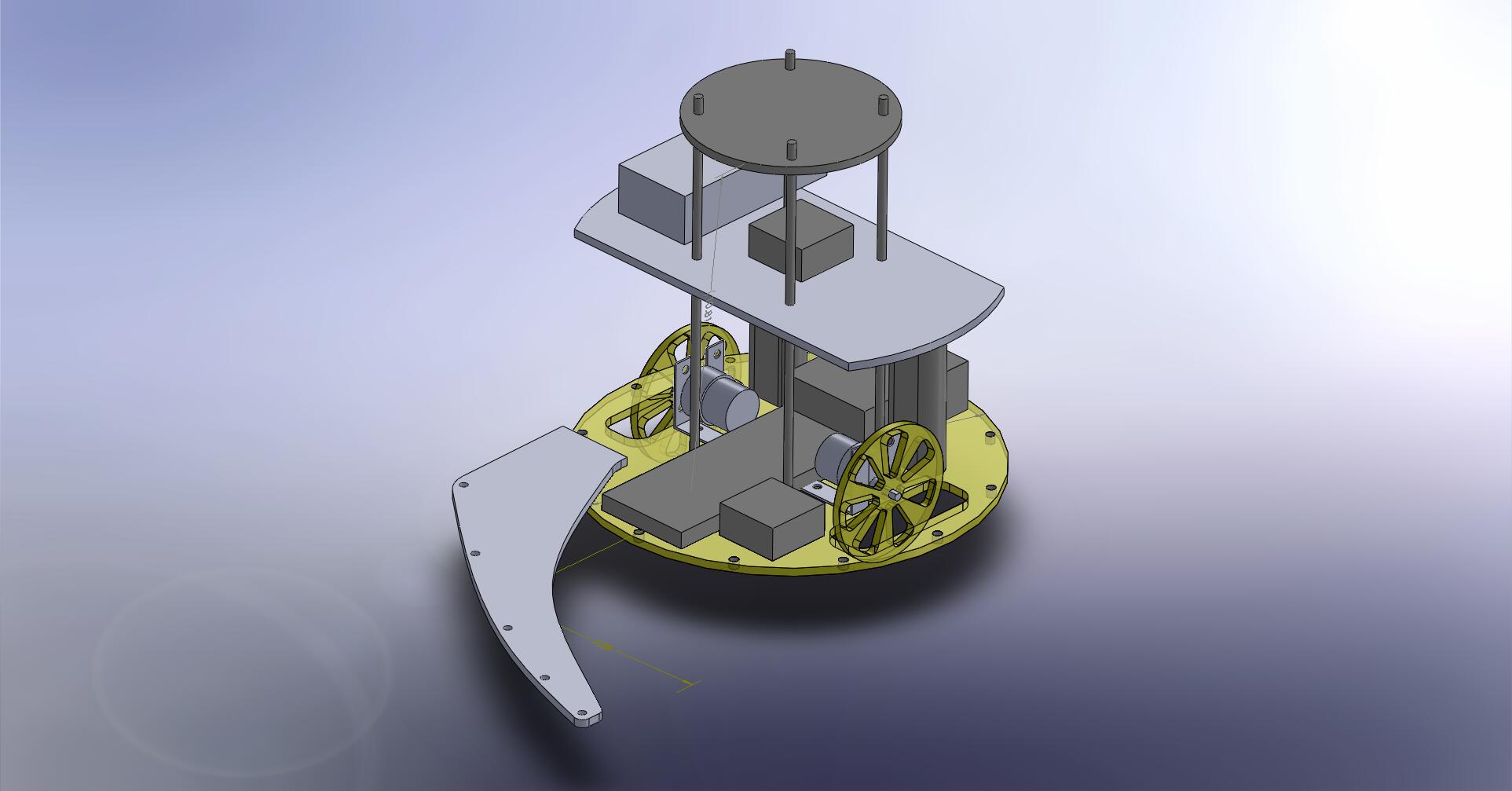

26. CAD up base, wheels, guid (done)
27. code tape extender
28. try out new motors.
29. Ball spewer. Best to have a door because it can be used to extend over. It must be flexible enough to run into bumper!-
30. try out new wheels

Meeting Notes

• Feb 18:
• * court start is mirror image -> can always start moving counterclockwise * Court start is mirror image -> can always start moving counterclockwise *
• Maybe keep design open enough to allow shooting opponent
• Feb 19: c32 screw specs EricLew 2/20/09 screws are 4-40 or 6-32 according to Matt and Melody. dimensions for center-to-center distance are about 3 5/8" x 2 1/2" - need to redo these with calipers
• Sn754410 screw specs ESL 2/29 center-to-center about 1 11/16" redo with calipers
• Battery specs ESL 2/20 Length 5 1/8" Width 1 13/16" Height 29/32"

System Block Diagram

• block diagram:


State Diagram

Purchases

Optional Shooting Module

If we have time ( a big if) maybe we can add a shooting mechanism. THIS SHOULD ONLY BE PURSUED IF WE HAVE TIME AND IF IT DOESN'T HURT SPEED DETRIMENTALLY. I envision a shooter fixed to the right side of the craft. An IR sensor stuck in a tube (to decrease its cone of detection) onthe right is the sensor to fire. When it sees the oponnent,we shoot. After a certain time after seeing the opponent, it turns off, letting more power go to wheels. A similar IR + tube on the left will turn the motor on (IR mounted on the opposite side). Another great idea is to just shoot all the balls at the beginning. When we are spinning around to orient ourselves correctly, we will also be searching for the opponent. If we see them, then shoot!!

Motor Calculations

We measured the stall current to be 1.2A and the motor resistance to be 10ohms.

From the information from Jameco's web, we know all the terms for the following motor equation at maximum efficiency:

V = IR+Ke*w

V = 12v

I = 293mA

R = 10ohms

w = 145RPM

Solving, Ke = .0626 V/RPM

We can also solve for Kt = T/I, at maximum efficiency

Kt = 2900g*cm/A

We note that at maximum torque, the current will be 1.2A, which is the absolute maximum operating current through our h-bridge. So, we need to ensure that our motors never stall!

Just talked to Sal, though we are close, we shouldn't need to worry about burning those H bridges too much. -- SamsonPhan - 23 Feb 2009

Minimum Speed Calculations

Circuits

ThisLink -- ESL 2/20

Pin choices for c32 (wheel) Hbridge C32

J1

1 ground ->

2 Adir -> T5

3 Aen -> T0

4 Bdir -> T6

5 Ben -> T1

6 ground

(doorlock/optional launcher hbridge)

c32 J1

1 ground ->

2 Adir -> M0

3 Aen -> M1

4 Bdir -> M2

5 Ben -> M3

6 ground

phototransistor vout -> AD0

This photo is way too dark!

Beacon sensing circuit:

Inventory

3x 2ft long 1/4" -20 all-thread 2x 161382 1x awesome plexiglass base plate 1x doorstop motor 4x rollerblade wheels 1e5x fasteners 5x limit switches 1x fuse (why?) 10x bearings 6x lbrackets

Measurements

• drive_system.xls: updated with 72mm wheel diameter

PrototypeOne (<- check it out by clicking on link)

External Links

http://www.stanford.edu/~egangans/Robot/Driving.htm

• beacon sensing circuit diagram:

Timers Allocation

Timer 0-3 for eric (door lock, light sensor, drive motors)

Timer 4-5: tape measure extension

Notes

Masonite - 24" x 48"

for lasercam on one sheet:

1 bottom plate

two skis

second level

6" top plate

wheels (mostly 72mm, maybe a set of 4in). on both acrylic sheet and masonite

extra hubs

• twotenacious.zip: TWOTENACIOUSCODE
